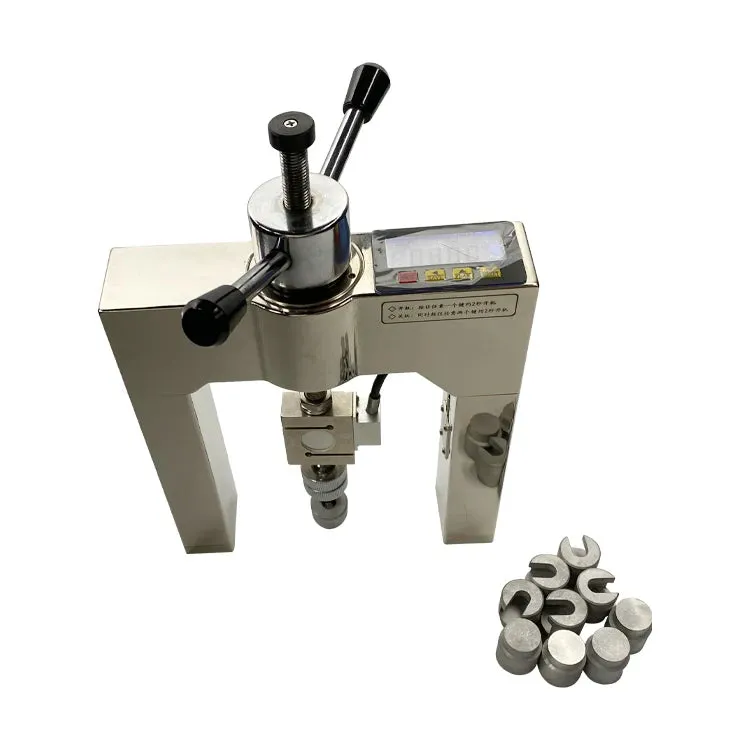

Carbon Fiber Bond Strength Tester

Application: The Carbon Fiber Bond Strength Tester is a cutting-edge instrument tailored for assessing the tensile bond strength between carbon fiber sheets and concrete in civil engineering structures. Its advanced design provides insights into bonding strength and failure modes during tension, yielding immediate experimental results.

Features:

1. Lightweight Alloy Construction: Incorporates a lightweight alloy body housing a built-in micro hydraulic system, ensuring portability and durability.
2. HC-L3 Embedded Digital Pressure Instrument: Equipped with a high-precision digital pressure instrument for accurate measurements.
3. User-Friendly Interface: Features a Chinese setting menu, facilitating easy data recording, inquiry, and deletion.
4. Enhanced Accuracy: Corrects 10 broken line values to enhance the instrument's precision and reliability.
5. Long Battery Life: Boasts an ultra-low power consumption design, with an automatic shutdown feature after 6 hours of inactivity. Continuous working time exceeds 200 hours on a single charge.

Specifications:

• Instrument Structure: Integrated
• Display Mode: Adjustable force / strength value Mpa
• Measuring Range: 0-10.000kN / 5Mpa
• Resolution: 0.001kN
• Accuracy Class: 0.5% F.S
• Peak Hold and LCD Lighting: Yes
• Data Storage: Stores up to 200 data points
• Data Correction: Features 10 segment polylines for data correction
• Power Supply: Large capacity lithium battery
• Drawing Stroke: 65mm
• Material: Light alloy

Experience unparalleled accuracy and efficiency with the Carbon Fiber Bond Strength Tester, an indispensable tool for civil engineering projects requiring precise bond strength assessments.
