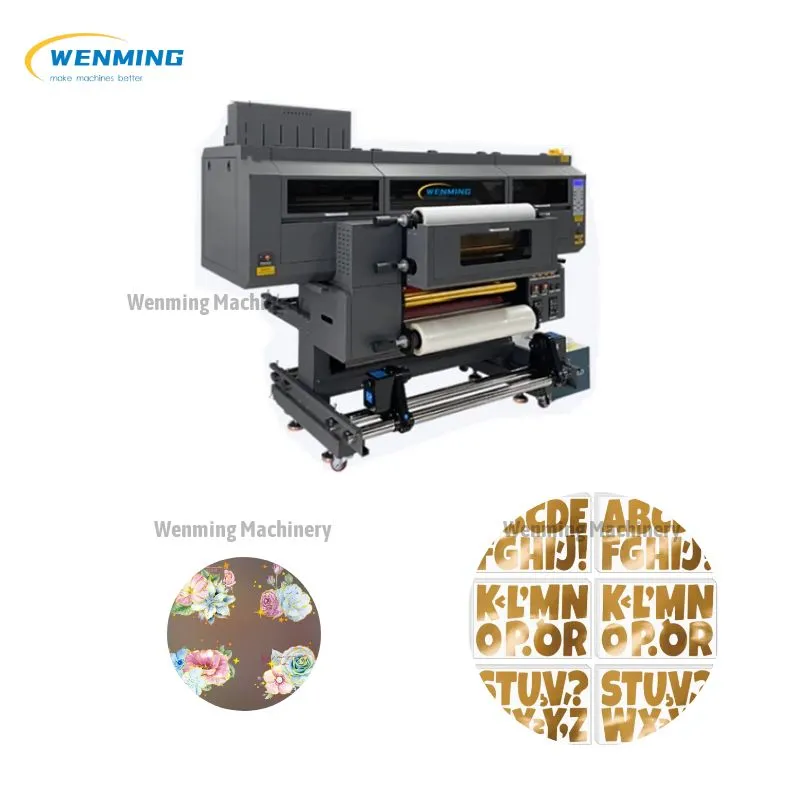

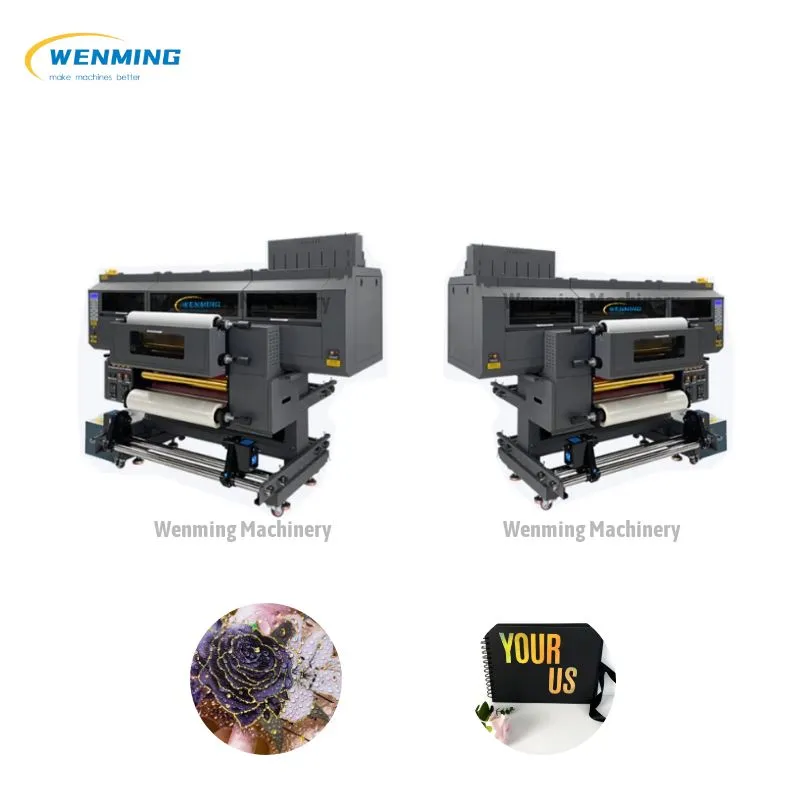

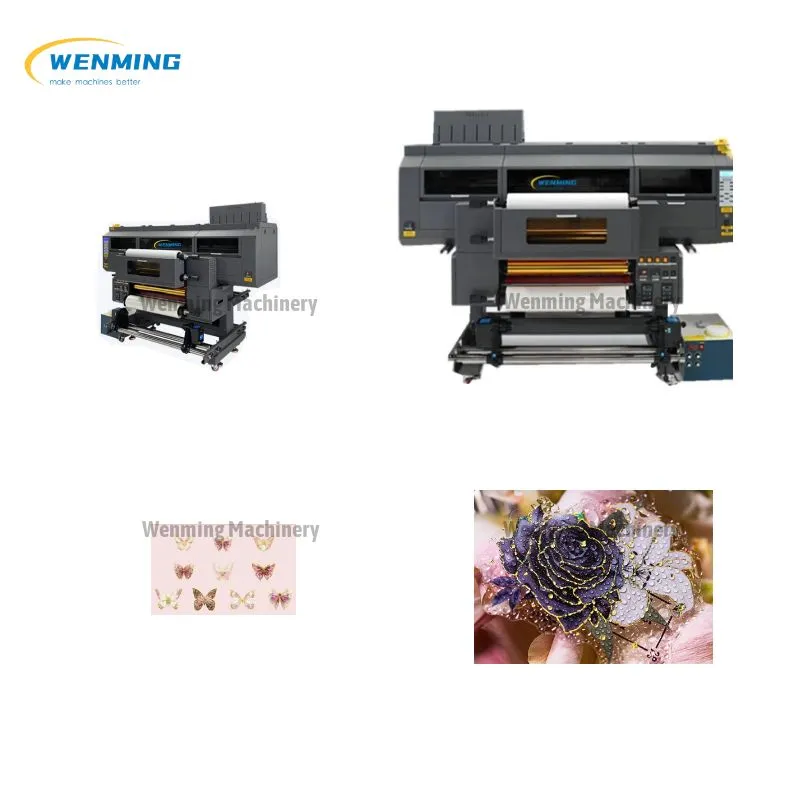

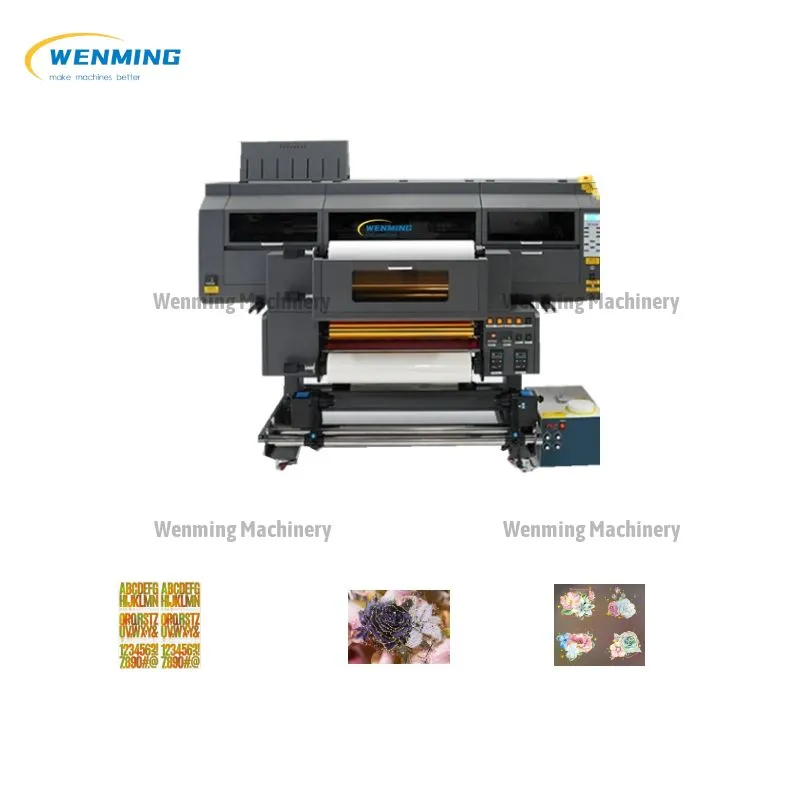

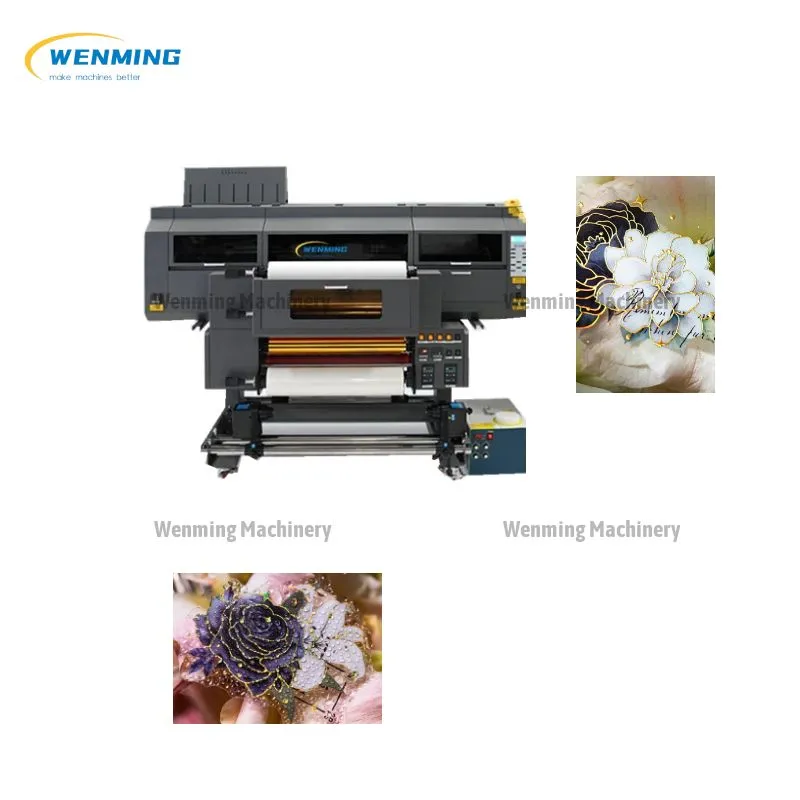

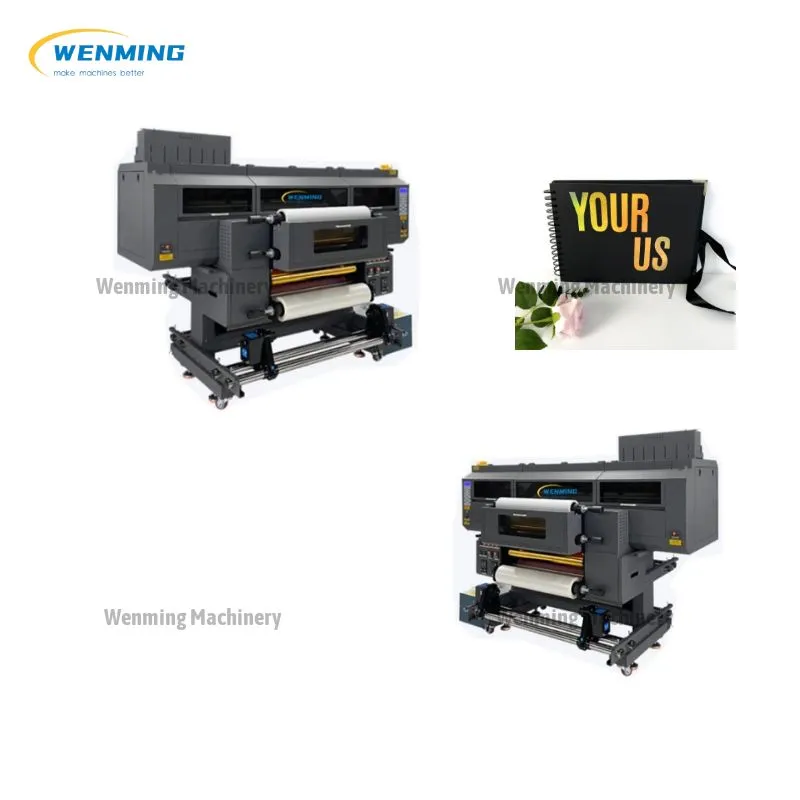

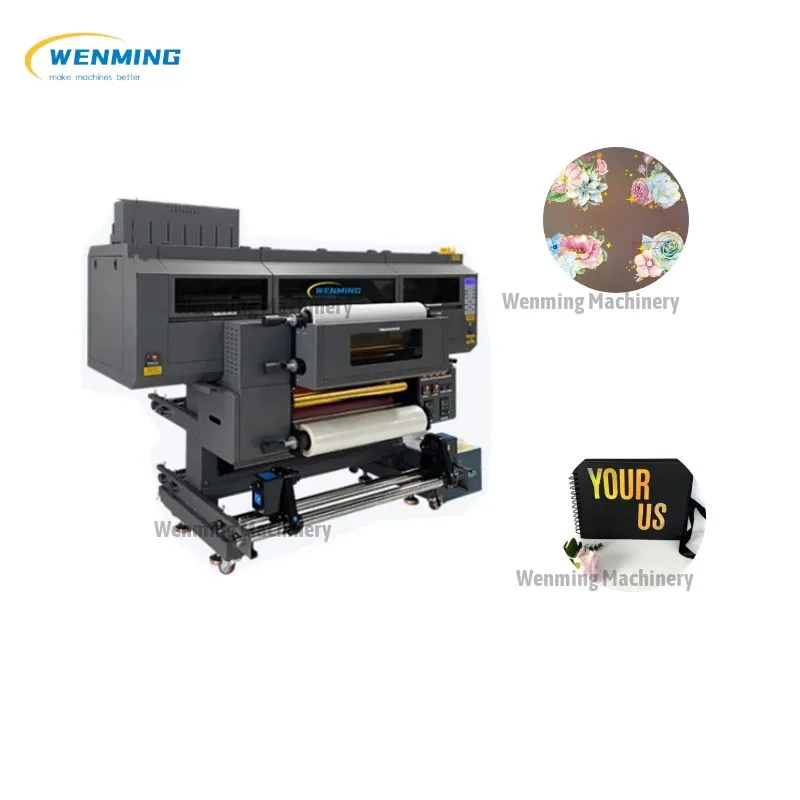

Efficient Crystal Laminating Machine Hot Stamp Equipment Stamping Machine
1.Product introduction of Crystal Laminating Machine :
Zhengzhou Wenming Machinery's new generation of crystal label hot stamping and laminating all-in-one machine can be turned on and produced without the need for other machines, saving manpower and space. One machine can realize five major functions: printing, waste discharge, hot stamping, laminating, and winding.
White color varnish hot stamping varnish can be produced at the same time, the picture has a stronger three-dimensional sense, and the hot stamping pattern is bright and clear. It can be widely used in multiple industries.
2.Technical parameters & Quotation of Crystal Laminating Machine:
|
Model |
WM-TJD604H |
|
Nozzle Type |
Epson i3200-U1 |
|
Number of Nozzles |
4 |
|
Printing Speed |
4 pass: 10 m²/h 6 pass: 8 m²/h 8 pass: 4.5 m2/h |
|
Printing Width |
60cm |
|
Media Type |
Crystal label AB transfer film |
|
Transmission Method |
rubber roller driven |
|
Ink Type |
UV ink |
|
Curing System |
LED water-cooled UV curing system |
|
Ink Configuration |
CMYK white varnish hot gold varnish/hot silver varnish |
|
Ink Capacity |
1Kg/bottle |
|
Connection Port |
Gigabit network port |
|
Temperature/Humidity |
Temperature: 20-28C; Humidity: 35-80% |
|
Power Supply |
AC 220V±10%, 50/60HZ |
|
Power |
3000W |
|
Machine Size |
1850 x 990 x 1610 mm |
|
Net Weight 170 Kg |
170 Kg |
|
Packing Size |
2004 x 1140x 1530 mm |
|
Gross Weight |
255 Kg |
|
RIP Software |
Standard: MainTOP Optional: PhotoPRINT |
Industrial Hot Stamping Machine
|
Model |
Parameters |
|
WM-TJJ930 |
Hot Stamping Machine Max. Area Available:930X670mm Max.Stamping Area:920X665mm Skip Range:1-665mm Foil-delivered Length:1-665mm Foil-feeding Precision: 1mm Foil-delivered Group:3 Skip Frequency:1-99 Working Speed: 22±2Times/min Temperature Range:1-170℃ Electric Power:12KW Main Motor Power:4.0kw 380V Net Weight:3500kg Gross Weight: 3700kg Overall Dimension:1780X1860X1900mm |
|
WM-TJJ120 |
Pneumatic Paper Hot Stamping Machine Pressure: 120KG Using Air Pressure: 0.2~0.8mpa Heating Plate Size: large 10*13cm Net Weight: 15KG Set Temperature: 0-400C Voltage: 220V (110V can be customized) Dimensions: 20*20*50cm Power: 500W Workbench Size: 14*20cm Packing: environmentally friendly wooden frame Hot Pressing Height Space: 0-17cm Cylinder Stroke: 5cm Controllable Hot Pressing Time: 0-99 seconds Other times can be customized Widely Used: wood, leather, plastic, paper, metal, etc. Hot stamping and indentation of various materials. |
Contact Us to Get a Quote
